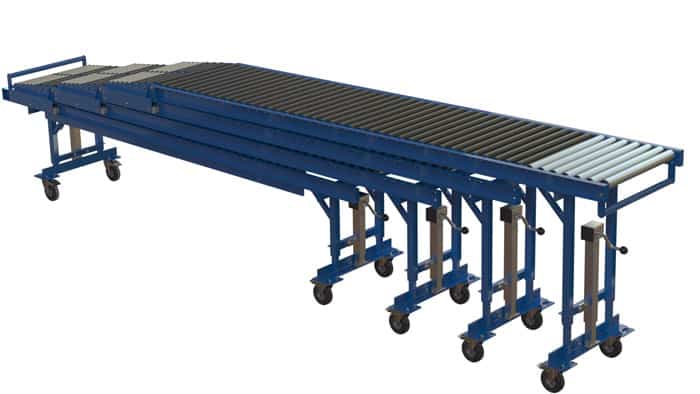

Telescopic Expressway Unloading & Loading Conveyor
The Telescopic Expressway Conveyor has been designed specifically as a cost-effective solution for efficiently loading and unloading shipping containers and trailers over a level loading dock.
| Side Frame Material | Mild steel |
|---|---|
| Side Frame Finish | Powder coated |
| Side Frame Detail | Channel |
| Roller Diameter | 50mm (20mm on transfer sections) |
| Roller Material | PVC in decks & Mild steel zinc plated on transfer sections and loading area |
| Roller Pitch | 65mm |
| Standard Widths | 600 & 700mm |
| Standard Open Lengths | 4,000mm, 8,000mm, 12,000mm, 16,000mm or 20,000mm |
| Number of decks | 1, 2, 3, 4 or 5 |
| Product features | Height adjustable jacks Low inertia free running rollers Heavy duty BZP steel loading rollers End stop bar Ergonomic handle Easy to move 125mm rubber castors Small closed length – easy to store away Can be hooked on to other Ocon conveyors |
| Product optional extras | Drop down endstop bar Skid plate Hook on extension sections Dump-table Hook on flexible conveyor |

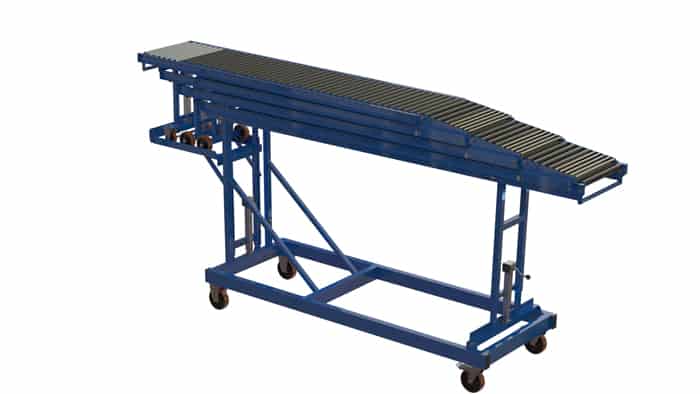

High Rise Telescopic Expressway Unloading Conveyor
The High Rise Telescopic Expressway Conveyor has been designed specifically as an economical way for efficient unloading of shipping containers and trailers without a level loading dock.
| Side Frame Material | Mild steel |
|---|---|
| Side Frame Finish | Powder coated |
| Side Frame Detail | Channel |
| Roller Diameter | 50mm (20mm on transfer sections) |
| Roller Material | PVC in decks & Mild steel zinc plated on transfer sections and loading area |
| Roller Pitch | 65mm on high rise, 75mm on discharge track |
| Width | 600mm |
| Conveyor Length | High Rise = 13,500mm open & 10,000mm penetration (4,500mm closed) Discharge track = 3000mm |
| Number of decks | 4 |
| Product features | Heavy duty robust chassis High quality manufacture Height adjustable jacks Low inertia free running rollers Heavy duty BZP steel loading rollers End stop plate Ergonomic handle Easy to move heavy duty 200mm polyurethane castors Small closed length – easy to store away Can be hooked on to other Ocon conveyors |
| Product optional extras | Various height options Drop down endstop Skid plate Hook on extension sections Dump-table Hook on flexible conveyor |

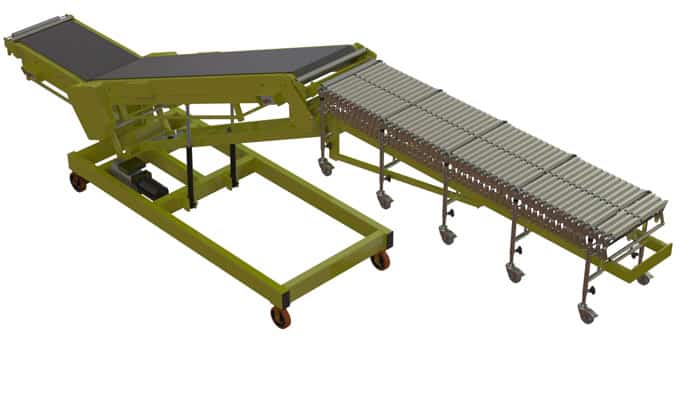

Vehicle Loader & Unloader Conveyor – Flexible Tongue
Vehicle loader complete with flexible tongue. Mobile powered belt and roller conveyor, fantastic at loading & unloading containers without the need of a dock leveller
| Drive Type | Flange mounted gear box motor |
|---|---|
| Drive power (kW) | 0.37 kW |
| Frame Material | Mild steel |
| Frame Finish | Powder coated |
| Frame Detail | Bed depth 142mm & robust chassis construction |
| Speed | 20 metres per minute (variable option available) |
| Controls | Panel on chassis. Stop / Start / Reverse at top & bottom |
| Belt Material Options | Black grip top – two ply, high grip PVC |
| Belt Width Options | 500mm & 600mm |
| Belt Boom Lengths | VL1 model = 2,500mm Main boom & 1,000mm Infeed boom VL2 model = 2,500mm Main boom & 1,500mm Infeed boom VL3 model = 3,000mm Main boom & 1,000mm Infeed boom VL4 model = 3,000mm Main boom & 1,500mm Infeed boom VL5 model = 3,500mm Main boom & 1,500mm Infeed boom |
| Gravity Flexible Tongue Options | 48mm dia Skatewheel – 3,500mm open (4,000mm penetration) 48mm dia Skatewheel – 5,000mm open (5,500mm penetration) 48mm dia Skatewheel – 6,500mm open (7,000mm penetration) 48mm dia Skatewheel – 8,000mm open (8,500mm penetration) *48mm dia Skatewheel – 9,500mm open (10,000mm penetration) *48mm dia Skatewheel – 11,000mm open (11,500mm penetration) 50mm dia Roller – 3,500mm open (4,000mm penetration) 50mm dia Roller – 5,000mm open (5,500mm penetration) 40mm dia Roller – 6,500mm open (7,000mm penetration) *40mm dia Roller – 8,000mm open (8,500mm penetration) *40mm dia Roller – 9,500mm open (10,000mm penetration) |
| Powered Flexible Tongue Options | *40mm dia Roller – 7,000mm open (7,500mm penetration) *40mm dia Roller – 8,500mm open (9,000mm penetration) |
| Series options / accessories | Standard duty and Heavy duty options Pop out roller Manual and electric hydraulic height adjustment options Variable speed (Inverter) Drive — Speed 8-24m/min Braked motor (only when variable speed fitted) Photo cells & bar code reading LED light for inside lorry / container Single phase and three phase options |
| *indicates: can only be used in conjunction with Heavy duty model |

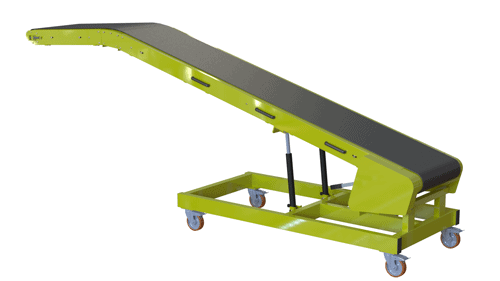

Vehicle Loader & Unloader Conveyor - Econoloader
Conveyor for unloading and loading of vehicles. Fantastic at conveying parcels & loose loads into vans! Popular in the logistics & distribution industry.
| Drive Type | Flange mounted gear box motor |
|---|---|
| Drive power (kW) | 0.37 kW |
| Frame Material | Mild steel |
| Frame Finish | Powder coated |
| Frame Detail | Bed depth 142mm & robust chassis construction |
| Speed | 20 metres per minute (variable option available) |
| Controls | Panel on chassis. Stop / Start / Reverse at top & bottom |
| Belt Material Options | Black grip top – two ply, high grip PVC |
| Belt Width Options | 600mm |
| Belt Length | 4,350mm overall length (2,100mm in vehicle) |
| Adjustable Belt Angle | 7.8 degree to 29 degree – adjustable via handpump |
| Infeed Height | 755mm to 788mm |
| Top Height | 990mm to 2480mm |
| Series options / accessories | Variable speed (Inverter) Drive — Speed 8-24m/min Braked motor (only when variable speed fitted) Photo cells & bar code reading Single phase and three phase options |

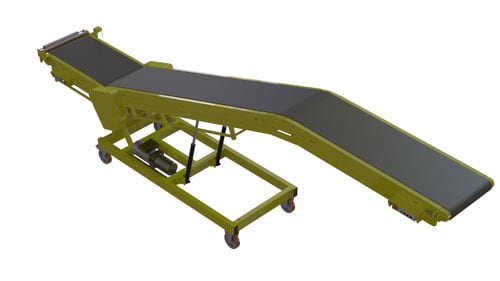

Vehicle Loader & Unloader Conveyor– VLP
A efficient solution for loading and unloading of vehicles without a dock leveller. Brilliant at conveying loose loads further into vans and lorries!
| Drive Type | Flange mounted gear box motor |
|---|---|
| Drive power (kW) | 0.37 kW |
| Frame Material | Mild steel |
| Frame Finish | Powder coated |
| Frame Detail | Bed depth 142mm & robust chassis construction |
| Speed | 20 metres per minute (variable option available) |
| Controls | Panel on chassis. Stop / Start / Reverse at top & bottom |
| Belt Material Options | Black grip top – two ply, high grip PVC |
| Belt Width | 600mm |
| Infeed Boom | 1,000mm |
| Main Boom | 3,000mm |
| Nose Over Boom | 2,000mm |
| Infeed Height | 700 – 1,100mm |
| Vehicle Penetration | 2,400mm |
| Series options / accessories | Pop out roller Manual and electric hydraulic height adjustment options Variable speed (Inverter) Drive — Speed 8-24m/min Braked motor (only when variable speed fitted) Photo cells & bar code reading LED light for inside lorry / container Single phase and three phase options |

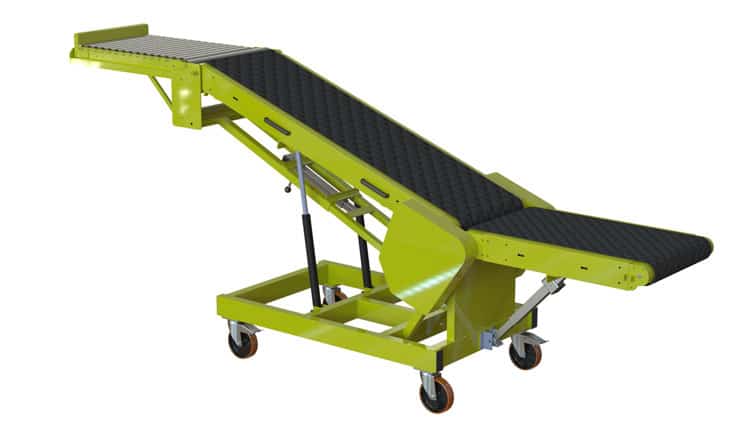

Vehicle Loader & Unloader Conveyor – Fixed Gravity
Vehicle loader conveyor, with gravity tongue. Mobile powered belt and roller conveyor, with self levelling gravity infeed / outfeed. Often used with vans, trucks & lorries.
| Drive Type | Flange mounted gear box motor |
|---|---|
| Drive power (kW) | 0.37 kW |
| Frame Material | Mild steel |
| Frame Finish | Powder coated |
| Frame Detail | Bed depth 142mm & robust chassis construction |
| Speed | 20 metres per minute (variable option available) |
| Controls | Panel on chassis. Stop / Start / Reverse at top & bottom |
| Belt Material Options | Black grip top – two ply, high grip PVC |
| Belt Width Options | 500mm & 600mm |
| Belt Boom Lengths | 2,500mm Main boom & 1,000mm Infeed boom 2,500mm Main boom & 1,500mm Infeed boom 3,000mm Main boom & 1,000mm Infeed boom 3,000mm Main boom & 1,500mm Infeed boom 3,500mm Main boom & 1,500mm Infeed boom |
| Fixed Gravity Length | 1,000mm |
| Series options / accessories | Pop out roller Manual and electric hydraulic height adjustment options Variable speed (Inverter) Drive — Speed 8-24m/min Braked motor (only when variable speed fitted) Photo cells & bar code reading LED light for inside lorry / container Single phase and three phase options |

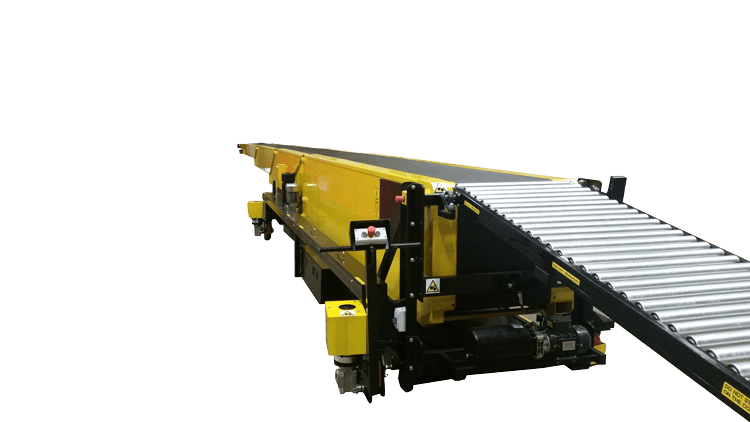

Powered Telescopic Belt Boom Conveyor
Telescopic boom conveyors are great for loose loading & unloading
The Belt boom offers versatility for unloading & loading vans, trucks, containers & trailers. Extensive electrical controls allow the boom to extend up to 18 metres into the vehicle, simply by the operator pressing a button.
The strength and robustness of this conveyor allow it to transport varied products, the smooth-running belt means the conveyor can transport small and large goods. The Belt boom conveyor can also be fitted with an electronically controlled man rider, giving the operator stress-free control when loading or unloading vehicles.
